Name: Carbo T2 loop pulley 40 mm
Brand: HARKEN
SKU: 2 148
Price: 46.85 EUR
Availability: InStock

1 3

Voir tous les produits de la catégorie simple pulley

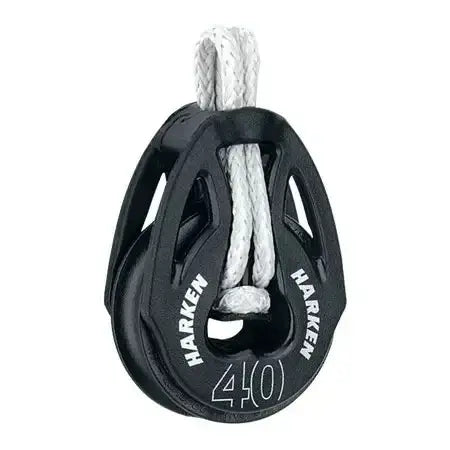

Carbo T2 loop pulley 40 mm

More details

This ultra-resistant block is made entirely from composite materials, ideal for precise adjustments of travelers, mainsheet, vang, cascading tackles or bridle systems.

Sheave diameter: 40 mm
Total length: 57 mm
Featherlight weight: 26 g
For ropes up to: 10 mm diameter
Maximum working load: 220 kg (breaking load: 544 kg)

Equipped with a removable SK75 Dyneema® loop, the Carbo T2 loop 40 mm block is easily installed around the fixed point for a perfect hold. This advanced technology improves safety and versatility on board, while reducing friction and optimizing the efficiency of maneuvers. Compliant with Harken standards, this model ensures consistent and reliable performance for all your high-end hardware needs.

SKU: 2 148 | Barcode: 097653238157

€46⁸⁵ EUR

Sheave Ø (mm) 40 mm
Sheave Ø (in) 1 9/16 in
Length (mm) 57 mm
Length (in) 2 1/4 in
Weight (g) 26 g
Weight (oz) .92 oz
Max. rope Ø (mm) 10 mm
Max. rope Ø (in) 3/8 in
Max. working load (kg) 220 kg
Max. working load (lb) 485 lb
Breaking load (lb) 1200 lb
Breaking load (kg) 544 kg
Loop included 2154

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
