Name: Sheave 20mm - Orbit - Single
Brand: RONSTAN
Price: 14.42 EUR
Availability: InStock

Voir tous les produits de la catégorie simple pulley

Sheave 20mm - Orbit - Single - RONSTAN

Small but mighty!

More details

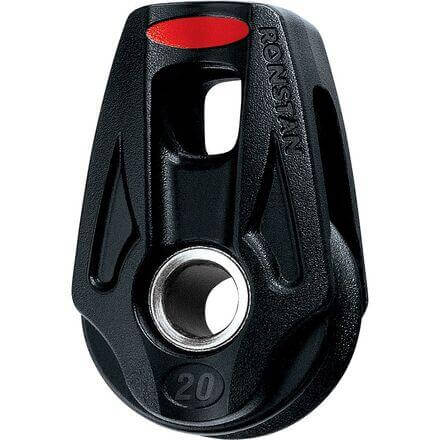

Ball bearing block with lashing attachment system (lashing line included). 20 mm high-resistance polymer sheave. Working load: 250 kg. Breaking load: 550 kg. Weight: 9 g. Designed for dinghies and sports catamarans requiring lightness and performance.

Working load (kg): 250
Breaking load (kg): 550
Weight (g): 9
Bearing type: Ball Bearing
Max rope diameter (mm): 6

SKU: RF25109 | Barcode: 9316800414185

Estimated Shipping Widget will be displayed here!

€14⁴² EUR

Tax included Shipping calculated at checkout.

Working load (kg): 250
Breaking load (kg): 550
Weight (g): 9
Bearing type: Ball Bearing
Maximum rope diameter (mm): 6

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
