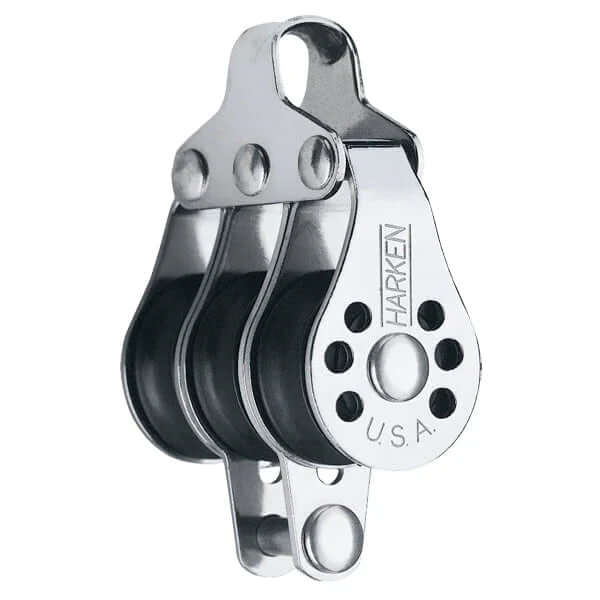

Name: Micro Block triple Ringot 22 mm
Brand: HARKEN
SKU: 229
Price: 62.56 EUR
Availability: InStock

Voir tous les produits de la catégorie triple pulley

Micro Block triple Ringot 22 mm

More details

Ideal for windsurfers, dinghies, and low-load adjustment systems, this block integrates seamlessly on boats of all sizes.

Length: 64 mm
Sheave Ø: 22 mm
Weight: 64 g
Max rope Ø: 6 mm
Maximum working load: 227 kg
Breaking load: 544 kg

Micro Block 22 mm blocks are characterized by their ultra-compact size and lightweight, while maintaining exceptional strength. Harken technology ensures smooth and effortless use, even under high tension.

Thanks to its superior quality materials, the Micro Block 22 mm ensures a long service life and consistent efficiency. Its light weight does not burden your equipment, while maintaining robustness capable of withstanding a breaking load of 544 kg with perfect compatibility with ropes up to 6 mm.

Low-friction technology for optimal efficiency in all your adjustments.
Robust body manufactured by Harken, one of the world's leading references in the production of high-end marine blocks.
Suitable for ropes up to 6 mm in diameter, offering maximum compatibility with modern rigging.
Reduced height and simple installation, ideal for confined spaces on board.
Excellent strength with a working load of 227 kg, amply meeting the requirements of competitive sailors and recreational enthusiasts alike.

SKU: 229 | Barcode: 097653008422

€62⁵⁶ EUR

Length (in) 2 1/2 in
Sheave Ø (mm) 22 mm
Sheave Ø (in) 7/8 in
Length (mm) 64 mm
Weight (g) 64 g
Weight (oz) 2.25 oz
Max. rope Ø (mm) 6 mm
Max. rope Ø (in) 1/4 in
Maximum working load (kg) 227 kg
Maximum working load (lb) 500 lb
Breaking load (kg) 544 kg
Breaking load (lb) 1200 lb

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
