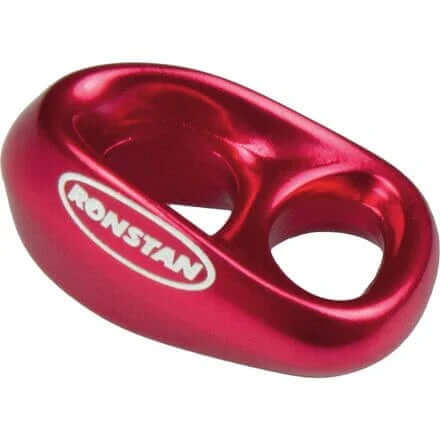

Name: Shock friction pulley - for 6 mm rope - red
Brand: RONSTAN
Price: 10.33 EUR
Availability: InStock

Voir tous les produits de la catégorie simple pulley

Shock friction pulley - for 6 mm rope - red - RONSTAN

Friction pulley, essential, very practical for trapeze shock cords, for example

More details

Compact thimble-style pulley made of anodized aluminum for ropes from 1.4 to 5 mm. No bearings for increased resistance to sand and salt.

Working load: 175 kg.
Breaking load: 350 kg.
Weight: 2.5 g.
Ideal for guiding lines, secondary tackles, downhaul bungee cords

SKU: RF8080RP10 | Barcode: 9316800519934

Estimated Shipping Widget will be displayed here!

€10³³ EUR

Tax included Shipping calculated at checkout.

Working load: 175 kg.
Breaking strength: 350 kg.
Weight: 2.5 g.

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
