Name: 29mm Ring Bullet
Brand: HARKEN
Price: 21.55 EUR
Availability: InStock

Voir tous les produits de la catégorie simple pulley

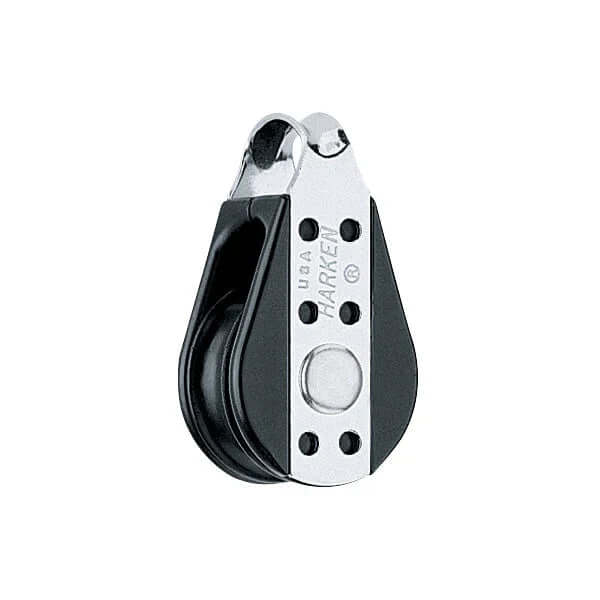

29mm Ring Bullet - HARKEN

29mm ring bullet: Low-friction guidance & ultra-light and robust construction. Enjoy Harken performance.

More details

Lightweight and compact block designed to provide very low-friction line guidance, whether the load is high or light.

Sheave diameter: 29 mm (1 1/8 in)
Overall length: 51 mm (2 in)
Ultra-light weight: 28 g (1 oz)
Max rope Ø: 8 mm (5/16 in)
Maximum working load: 136 kg (300 lb)
Breaking load: 907 kg (2000 lb)

It offers superior working load capacity while remaining incredibly lightweight, allowing sailors to gain performance without compromising safety.

Low-friction technology for efficient line guidance
Robust structure suitable for high and repeated loads
Quick release and engagement even under stress
Compatibility with a wide range of lines and ropes up to 8 mm
Compact and lightweight design optimizing space and maneuverability on board

SKU: 82 | Barcode: 097653002888

Estimated Shipping Widget will be displayed here!

€21⁵⁵ EUR

Tax included Shipping calculated at checkout.

Length (in) 2 in
Sheave Ø (mm) 29 mm
Sheave Ø (in) 1 1/8 in
Length (mm) 51 mm
Weight (g) 28 g
Weight (oz) 1 oz
Max. rope Ø (mm) 8 mm
Max. rope Ø (in) 5/16 in
Maximum working load (kg) 136 kg
Maximum working load (lb) 300 lb
Breaking load (kg) 907 kg
Breaking load (lb) 2000 lb

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
