Name: Carbo T2 lashing ratchet pulley. 57 mm RED
Brand: HARKEN
SKU: 2160.RED
Price: 99.00 EUR
Availability: InStock

Voir tous les produits de la catégorie simple pulley

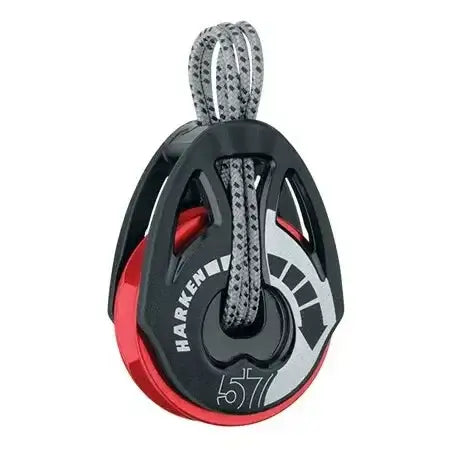

Carbo T2 lashing ratchet pulley. 57 mm RED - HARKEN

This high-performance model offers lightness, high strength, and adaptability for use on dinghies, sport catamarans, or racing yachts.

Sheave Ø: 57 mm
Length: 79 mm
Weight: 71 g
Max rope Ø: 10 mm
Maximum working load: 227 kg
Breaking load: 907 kg
Holding power: 10:1

Its automatic ratchet mechanism, with a reduced number of moving parts, offers both rotational freedom and effective locking under tension, significantly outperforming older generations of blocks.

Ultra-versatile lashing attachment, ideal for precise adjustment of mainsheet and spinnaker sheets.
Automatic activation of ratchet mode under pressure for optimal rope control during rapid maneuvers.
Integrated directional indicator for always coiling in the right direction.
Supplied with Spectra® rope for enhanced durability and reliability.
Perfect solution for demanding practitioners looking for a lightweight, high-performance, and easy-to-install block.

Adopt the Harken Carbo T2 lashing Ratchet 57 mm RED Block and benefit from a technological advance that will make a difference on all your watersports activities.

SKU: 2160.RED | Barcode: 097653281290

€99⁰⁰ EUR €107⁶⁵

Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Length (mm) 79 mm
Length (in) 3 1/16 in
Weight (g) 71 g
Weight (oz) 2.5 oz
Max rope Ø (mm) 10 mm
Max rope Ø (in) 3/8 in
Maximum working load (kg) 227 kg
Maximum working load (lb) 500 lb
Breaking load (kg) 907 kg
Breaking load (lb) 2000 lb
Holding power 10:1

Our tips for choosing

Workload and breaking load

Choose your pulley based on the workload it will have to handle and the desired gear ratio. The orders of magnitude vary depending on the support: 400 to 500kg for the mainsheet or cunningham of an 18-foot catamaran, 100 to 200kg for the mainsheet or downhaul of a 420 dinghy for example.

Coefficient of friction

Modern ball bearing pulleys offer a much lower coefficient of friction than those without balls and are recommended for maneuvers that require constant adjustment (mainsail sheet, downhaul, cunningham, spinnaker essentially).

Restraining force

For the mainsheet which is not always fully tightened, or even never on some boats which require constant adjustment (29er, 49er, Class A,...) as for the spinnaker sheet, favor automatic or non-automatic winch pulleys, which considerably save muscles and gloves thanks to a retention that can go up to 70% of the workload.

Sheave diameter

Choose the diameter of the pulley according to the diameter of the rope it will guide. For example, depending on the support and workload, a 40 or 57 sheave is very suitable for a 6 to 10mm mainsail sheet. For Cunningham or downhaul type maneuvers, 16 or 22 sheaves are suitable.

Material

Stainless steel, carbon, composite, it's essentially a matter of weight, with an impact on the price: it all depends on the importance you attach to it. If the pulley is to guide a cable, use aluminum sheaves which will be much more resistant than composite materials.
